VL-38 (Vertical Climbing System)

Vertical Ladder Climbing System

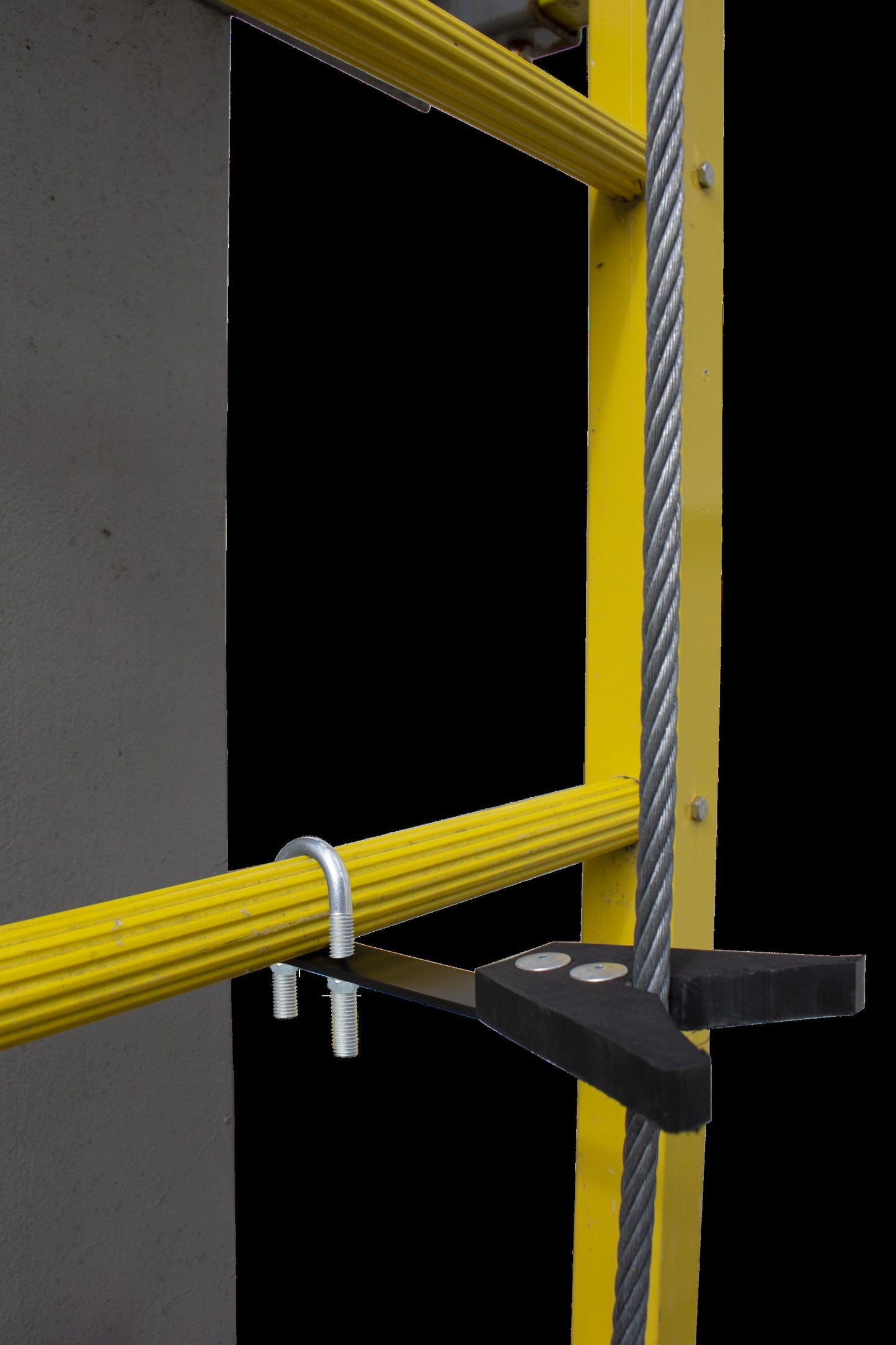

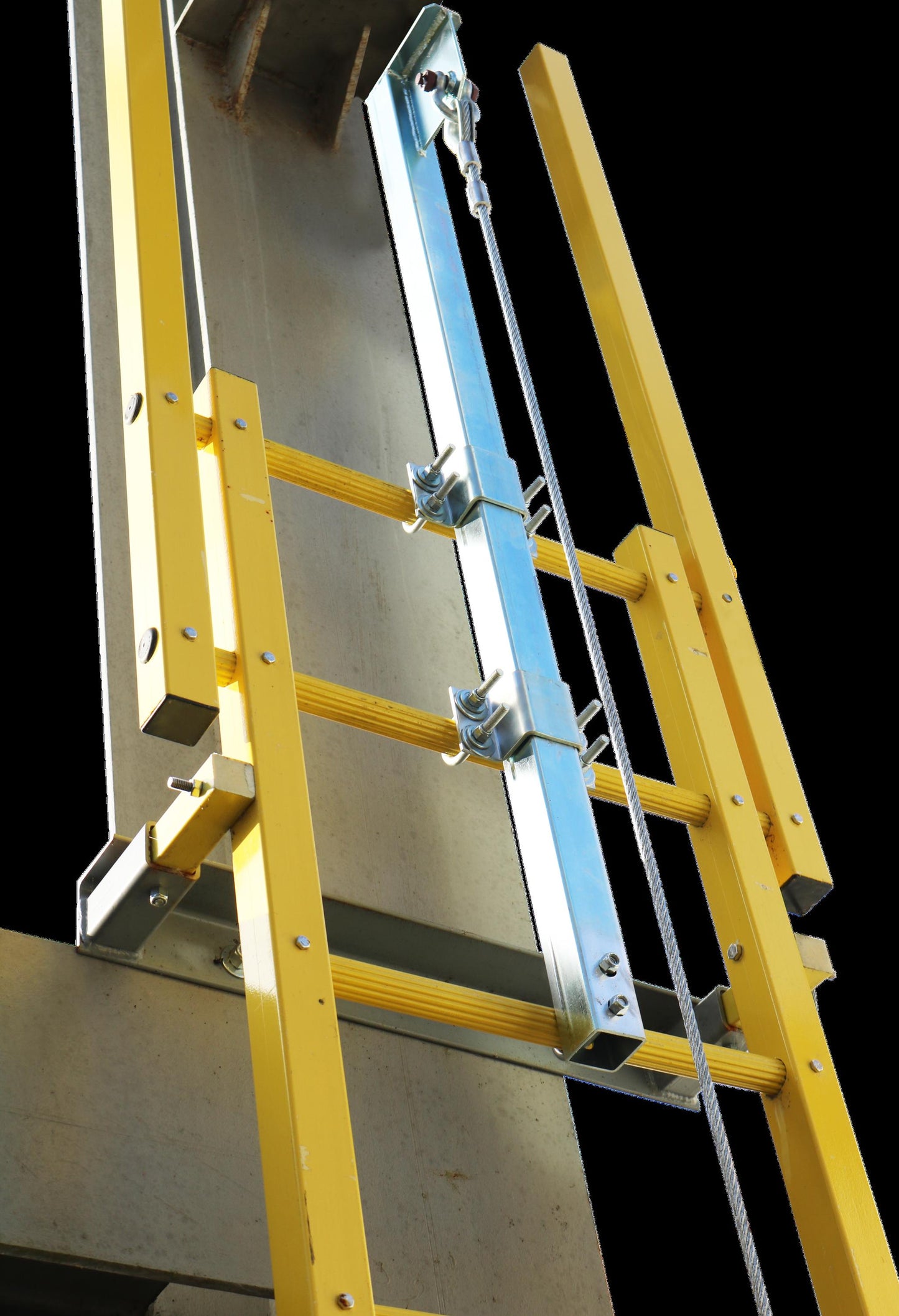

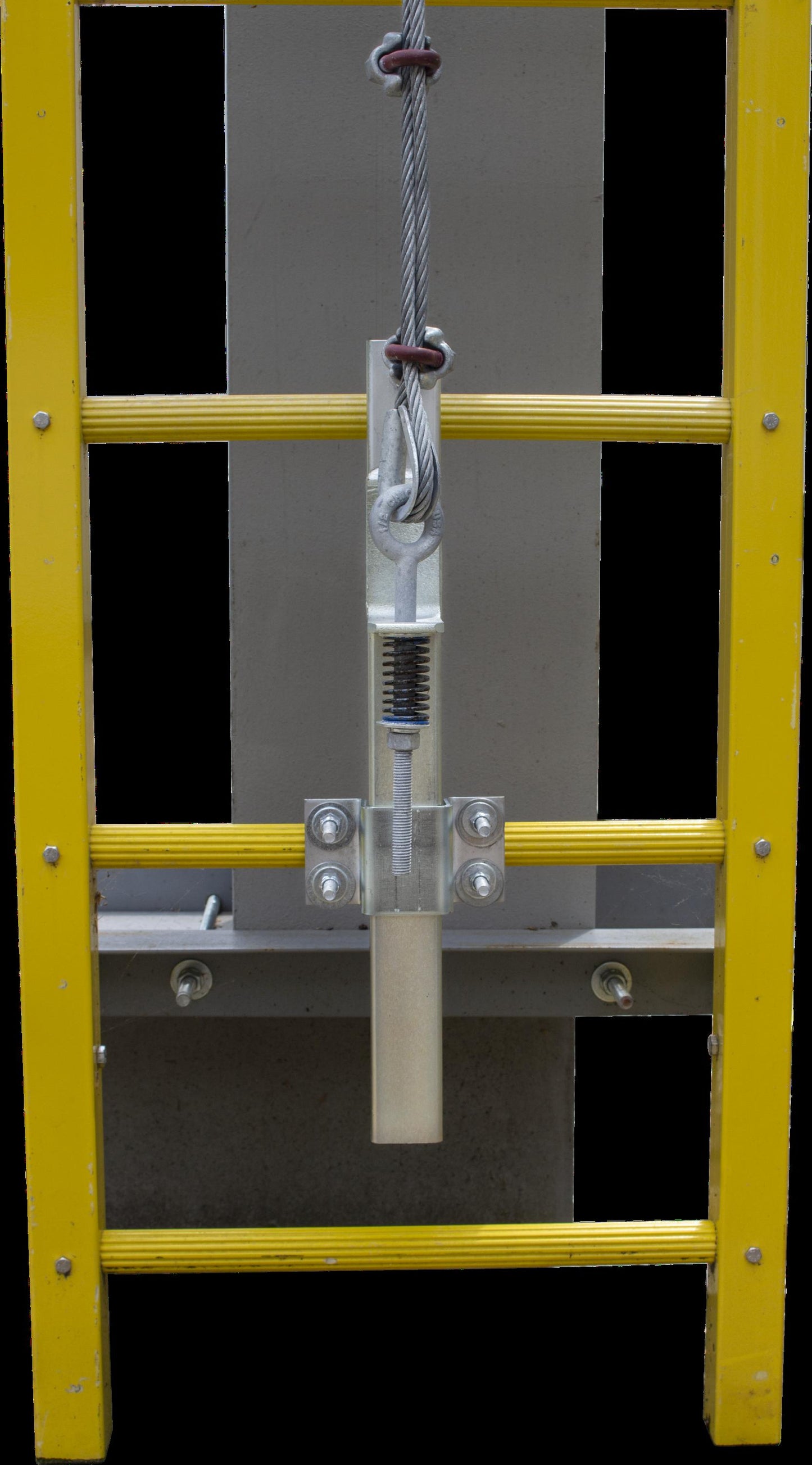

All FCP cable climbing systems come with top bracket, bottom bracket (w/ tensioner), rung clamp assemblies (fit up to 1 1/8" diameter rungs), 3/8" galvanized wire rope lifeline (permanently terminated one end), clips other end, and appropriate amount of cable guides based upon length (see below). Full body harnesses and cable grabs sold separately. Different lengths are available. Mounting hardware available for configurations other than fixed ladders. Please inquire for specific applications.

Number of Guides (based on length):

20 feet - 0 guides

30-50 feet - 1 guide

60-70 feet - 2 guides

80-100 feet - 3 guides

110-120 feet - 4 guides

130-150 feet - 5 guides

160-170 feet - 6 guides

180-200 feet - 7 guides

210-220 feet - 8 guides

230-250 feet - 9 guides

260-270 feet - 10 guides

280-300 feet - 11 guides

LTL Freight Required - Request a Quote
